Stamping
Wilson Tool provides a full spectrum of stamping options including punches, dies, guides, retainers and accessories.
Need Help?
Contact aTooling Technician
![Inch Headless Counterbore Relief Die](/medias/headed-imperial-die-key-info-drw-19.png?context=bWFzdGVyfGltYWdlc3w5NzgzMHxpbWFnZS9wbmd8YUdVNUwyZzFaaTg0TnprNE1qSTJOVEV6T1RVd0wyaGxZV1JsWkMxcGJYQmxjbWxoYkMxa2FXVXRhMlY1TFdsdVptOHRaSEozTFRFNUxuQnVad3w2MjI2OGFhMzI3NGI1N2FhM2U2NzY3NTdmMGJmNGViMzI4MGMzNDY1OGM5OGQ5YzBkOGUwY2IyMDBlMDNmYzBk)
![Inch Headless Counterbore Relief Die](/medias/headed-die-shapes-drw-19.png?context=bWFzdGVyfGltYWdlc3w2ODU5OXxpbWFnZS9wbmd8YUdObUwyaGlZeTg0TnprNE1qRTVNRFF5T0RRMkwyaGxZV1JsWkMxa2FXVXRjMmhoY0dWekxXUnlkeTB4T1M1d2JtY3w4ODE4MDJmMWYyY2Q0YzVlYTcyMzUzMDkzMTVmZTE3ZWU1MTM3Mzg0ZmM0ZjllNDdkMWViZmNhNjZhOWU0YWZi)
![Inch Headless Counterbore Relief Die](/medias/headed-headless-counterbore-imperial-die-drw-19.png?context=bWFzdGVyfGltYWdlc3wyMzI4MHxpbWFnZS9wbmd8YURnM0wyaGtOaTg0TnprNE1qSXpOekk0Tmpjd0wyaGxZV1JsWkMxb1pXRmtiR1Z6Y3kxamIzVnVkR1Z5WW05eVpTMXBiWEJsY21saGJDMWthV1V0WkhKM0xURTVMbkJ1Wnd8MDNjOGU0MWYyZGJkNTViOTIwYzgxZjk5OGY5ZWI1NWRmMjM1NDU5NmZjNDk2NjdlOGFmNWU0MzkxYTFiYmQ1Mw)

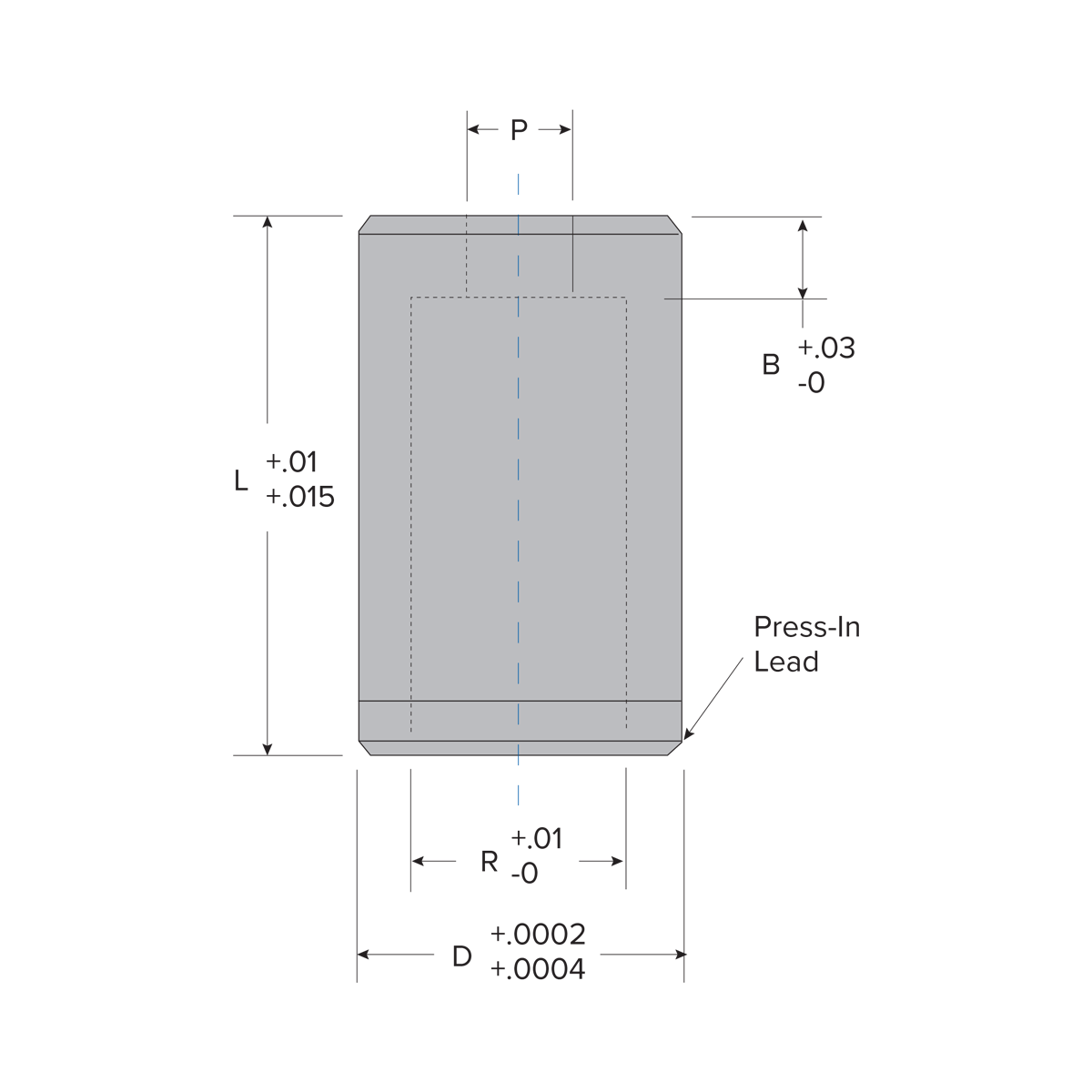

A counterbore die is designed to have less potential for slug stacking. Counterbore dies are also available with the Slug Hugger® 2 and Slug Hugger® 4L slug retention to prevent slug pulling. Counterbore dies can also be used in pierce and forming applications.
The Impax Tooling Solutions® division of Wilson Tool leads the stamping industry with service, quality, and innovation. We manufacture a full selection of high quality punch and die components for the metal stamping industry, including standard shapes, round forms, and special 2D shapes.
